Hey thanks Jim! Back to working up the interior of the wheel shop. Finished up two major work stations for wagon wheel repair gleaned from period reference photos. Should have an update in a few days or so.
The detailed walls of the Wheelwright Shop are completed and glued to the diorama base (this can be seen in the previous post photo). Prior to the Blacksmithing shop walls being detailed and installed, I need to finish the Wheelwright Shop floor detailing as access will be limited hereafter. Based on research and reference pictures, I scratch built two main pieces of "equipment" to aid in servicing the wagon wheels that are the main product/service for the shop. This was motivated by Brett's beautifully detailed wagon wheel 3D prints. There are two sizes that will be incorporated into the scene, a large wheel and a small wheel. Brett also printed some wheels under repair/damaged that are included in the Blacksmith 3D Print Set. What...you don't have one of those sets?...you're the only one I'm afraid! I decided to detail the wagon wheels in two distinct ways. The first is a newer or new wheel that's being built/finished in the shop, and the other a well used wheel in for repair/service (figure 1). The first piece of "equipment" I wanted to build is a chunky wood beamed repair bench. I found a reference pic that depicted a nice large bench with a chunk of natural log timber at the end attached to the bench with a piece of strap steel (figure 2). This timber was utilized as a wood anvil. The other piece is a jig for holding up a wheel that allows the wheel to be turned free (figure 3). These two pieces will be the center points for all the other details and clutter to come. I like to have these types of dedicated points of activity to build details around and establish the workflow. More later...

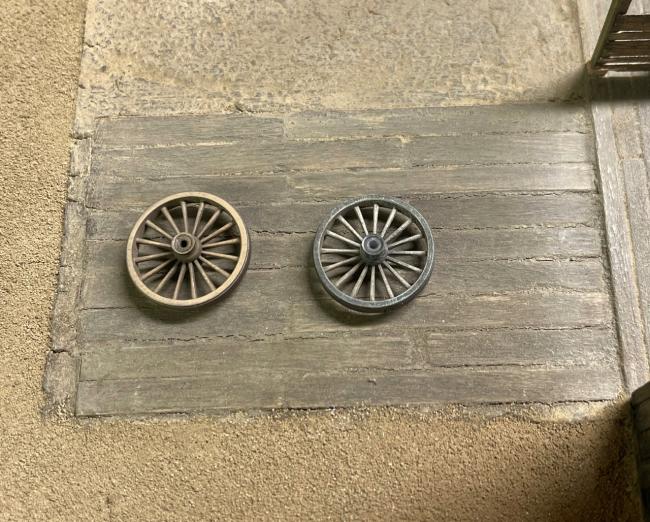

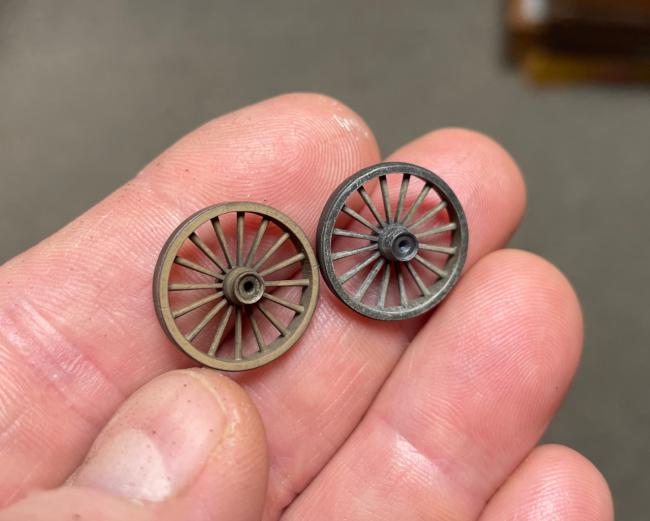

(figure 1) Here are the two wheel finishes I came up with. The one on the left is the newer wheel and on the right is the well used version. Finish was accomplished with a different primer color with khaki on the new one and black on the older wheel. Finished off with dry brushing, oils, and pigments. Note: Wheels are sitting on the blacksmith wood floor side, background is the packed dirt floor side of the blacksmith shop.

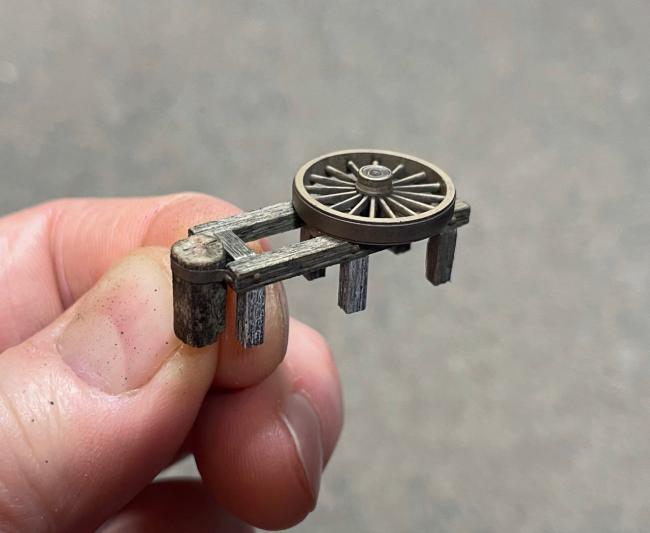

(figure 2) This is the workbench I built inspired from a reference photo. Note the timber anvil attached to the bench end.

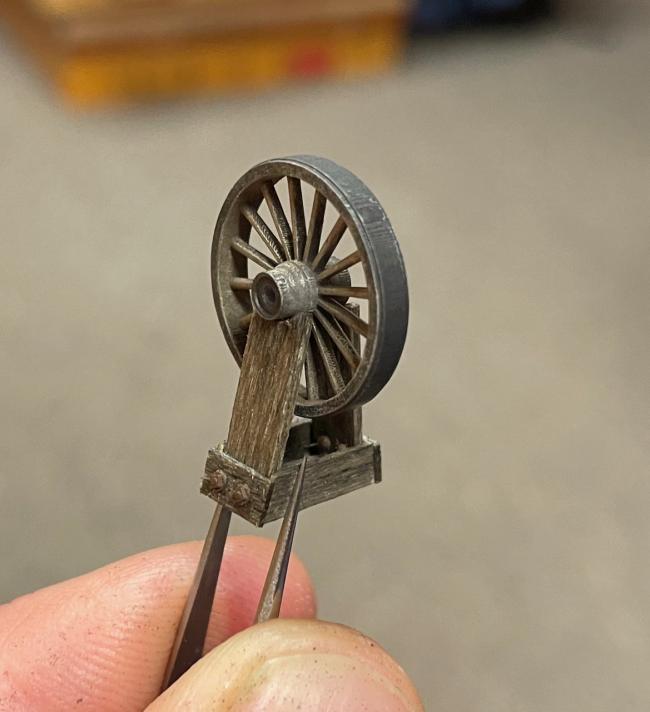

(figure 3) This was a tricky little build, mainly due to the size and getting the angled timbers lined up. This piece was also inspired by a reference photo. Allows the wheel to be rotated whilst being worked on.
Fantastic details Ken. Great looking finish on the workbench and the stand to rotate the wheels. Do I see the bolt heads on the inside of the right hand upright? Great work! Randy
Wonderful work Ken, excellent building and execution. Always great to see those old and obsolete methods/equipment being modeled. It will set your work apart, even more.
Thanks so much Brett. Had the need to showcase these wonderful wagon wheel prints of yours! Would never have thought to make a Wheelwright shop section without the inspiration from those prints.
What the heck Jerry! Somehow I missed your post here, so sorry my friend. Thanks so much for your kind words and should have an update soon. A few life things have delayed significant progress. Again, sorry for the late response.
appreciate that Joel and nice hearing from you. Hope you and family are doing well. As always, keep in touch.
Pathetic little update here as the Wheelwright Shop floor detailing is being worked on. I detailed the walls of the shop prior to assembly, and now the walls are up and the shop floor is being worked on to tie the entire interior together.
I decided to post a "filler" segment just to keep things going. One of the key elements to any comprehensive detail work is layering. Brett speaks of it often in the manuals and this should be an integral part of every modelers work-flow. The following is just a small example of this technique:
The edge of an interior wall creates a very hard line and I like to plant some details at this point to soften this hard line and provide some visual interest. On my project here, I placed a fire extinguisher on the post of the interior wall (breaks up the hard line and provides visual interest). I then detailed a barrel that will be placed below the fire extinguisher up against the wall to further, that's right, break up the hard line and add visual interest..lol.

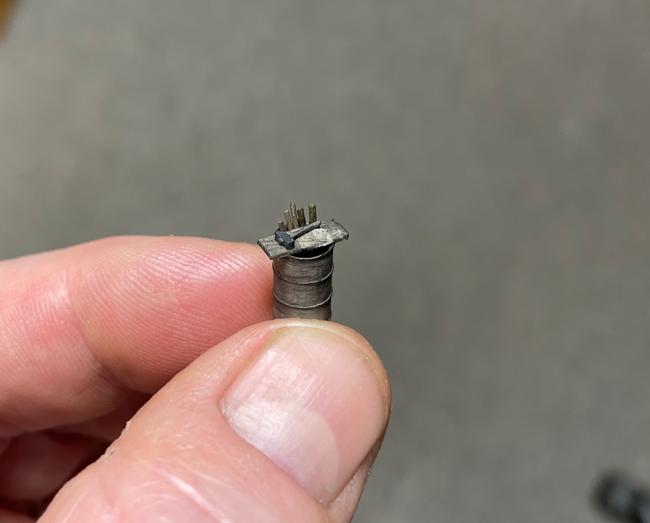

A barrel at the end of the wall would serve to break the hard line but would be boring and provide limited visual interest. This is where simple "layering" works well. I finished the barrel in a well used grey color. I then added a board across the top, placed a shop rag on top of the board, placed a sledge hammer on top of the rag, and added some scrap bar stock and wood in the barrel (photo below). This simple process created a small model with visual interest and tells a story. A little extra time but well worth the effort.
Example of the simple technique of layering.

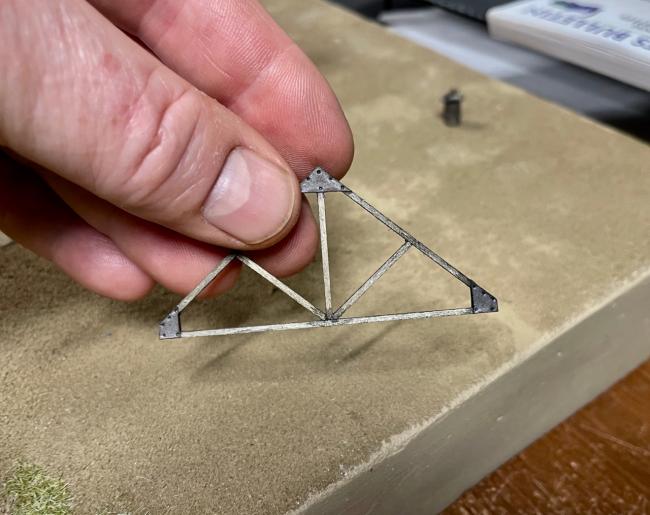

One other little tid-bit. I was making the trusses for the wheel shop and the points of contact on the lower angles did not provide much surface area for a strong glue joint. A good fix is illustrated below and provides a very strong joint and a little visual interest that will hardly be seen! These were simply made from paper and glued in place.
Pathetic my eye....I am always amazed at your work......you have the eye that I tell people about in the clinics I teach at our On30 shows.....you see things in a realistic miniature world. you can see the layers as they go on and more important.....when you think one more layer is needed...you know to stop...that its done. I also marvel because you model in HO....In a way my eyes and fingers are happy that I model in O.....also my mind....as HO would drive me insane.....I do like the idea of using half the paint if I did HO....lol.....As always...your modeling lokes realer than real......Merry Christmas Ken...
Really appreciate that Art! I hear ya regarding the size of these details in HO, can be frustrating to get the look I'm after sometimes due to the size. Merry Christmas to you as well my friend.
Thanks Jim. Right, it really did add some strength and gives it a substantial look to it.
Thanks Bryan and it solved the issue for sure.
Appreciate ya Jerry and just like you point out...it comes down to the many minor details adding up to make an impact. It's all in the minutia. Merry Christmas to you as well buddy.
Nice of you to say Tom and I appreciate the support on my updates and your camaraderie in general. Means a great deal.
Lol...cracked me up Robert! Well it seemed a bit of a stretch to call this one an update. Thanks so much for your support and Happy Holidays to you as well.
