Nice Ken! Are those "metal" straps on the ends of the shelves, or corner brackets? In any case nice detail! Can't wait to see if filled with details! Love the fencing on the top shelf.
Thanks so much Tom and for your interest, kind words, and noticing the additional little details. I wanted to add interest to an otherwise somewhat boring shelf unit. I added the "metal" corner brackets which I made from paper cut to size. The top level would allow a 1:87 scale LP to walk around so added the ladder, had rails, and fencing primarily for visual interest but supposedly functional as well. I like to place major pieces around the interior of my structure and then begin filling in the smaller details. The placement of the large pieces gives me a better feel for traffic flow and what smaller details I want to include.
Those little corner braces make the entire thing more 3 dimensional. They add that little bit that makes it more than just glued together. I am definitely appropriating that idea
Really nice you noticed that Ben, that’s exactly why I did that! Adds so much more interest and gives a much more substantial look than the boards just butted together.
Hey Emery, nice hearing from you! Appreciate your thoughts here. Interior appointments are coming along and should have a more comprehensive update soon.
Before posting an update on Shelby's...If you haven't seen Brett's new O Scale kit featured here on the web-site...what's wrong with you?? A must see of this beautiful piece of work!
The following excerpt illustrates the concept, even in kit building, of planning ahead to achieve the overall goals of your build. Most may not be interested in this lengthy descriptive of what I'm doing, so exit now and go check out Brett's new kit!
I am moving along with the interior work on Shelby's main structure. The plan is to fully detail the interior including lights. The first and second floor walls are built separate, and a bit differently, due to the interior of the first floor being visible through the two large openings in the front and side of the structure. After the upper and lower walls are built they are joined together to form one solid wall. The call out in the instructions is for the first floor walls to be framed in scale 4x4 stripwood. I wanted a more in scale framing so I decided to frame the walls in scale 2x4s. On one hand this gives a more "in scale" appearance for the purist, but on the other hand, allows the walls to be less rigid and prone to warping. The interior of the upper level will not be visible so those walls were braced with the traditional 1/4 inch wood pieces. To solve the problem of the lower walls warping, I braced them with scale 8x8s giving the posts the appearance they are functional in supporting the upper level. These posts extended above to the upper level to a help secure the joining of both levels into one flat, straight, wall. (see figure 1.)

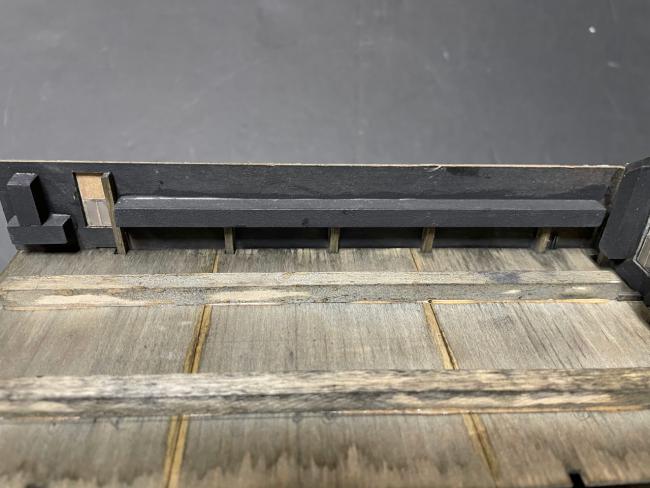

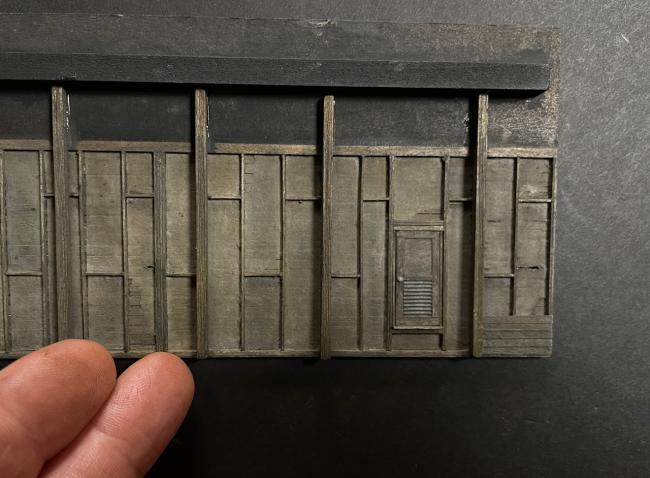

(figure 1.) Note the finished and detailed "bracing" that appear as support posts for the upper level.
As mentioned earlier, I assembled three of the four walls to allow access to detailing the interior. This created issues with the final wall attachment after everything else is done. Once those issues were sorted out, I turned my attention to the floor of the upper level. This floor would obviously be visible through the two large openings in the lower level front and side. I will be detailing the ceiling of the lower level with shop lights, wiring, and other details. The floor material of the upper level is scribed flooring in three pieces that are put together and braced. The simulated floor boards run perpendicular to the long dimension of the floor. Problem with this is, I wanted to put joists under the floor that would tie into the posts I used as bracing for the lower walls. This adds a nice level of visual interest. As a result, my joist would be running the same direction as the second story floor boards. This of course can't happen as the floor boards always run perpendicular to the joists. Solution...I covered the underside of the floor with stripwood running the opposite direction of the scribed floor boards. (see figure 2.)
(figure 2.) Note the very end of the right side of the floor. This is the original scribed floor piece. This portion is the underside of a slight overhang on the front of Shelby's and will be covered as the rest of the floor after it is installed. I had to notch out the floor everywhere there was a support post. This allows the floor to be installed as well before the final wall is put in place. (see figures 3, 4, and 5.)

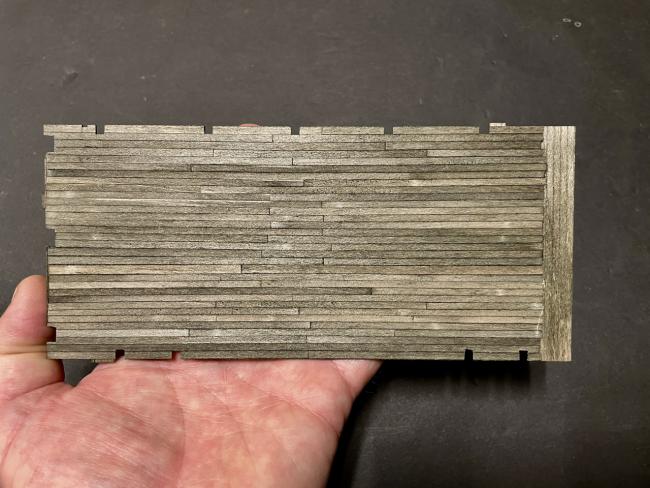

(figure 3.) View from above of the second floor flooring in place.

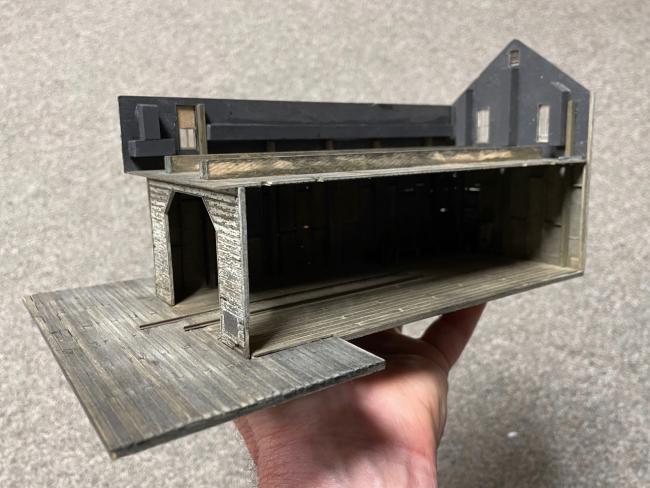

(figure 4.) Second floor flooring in place and set up to allow all this to be completed with the final wall installed once all the detailing is done.

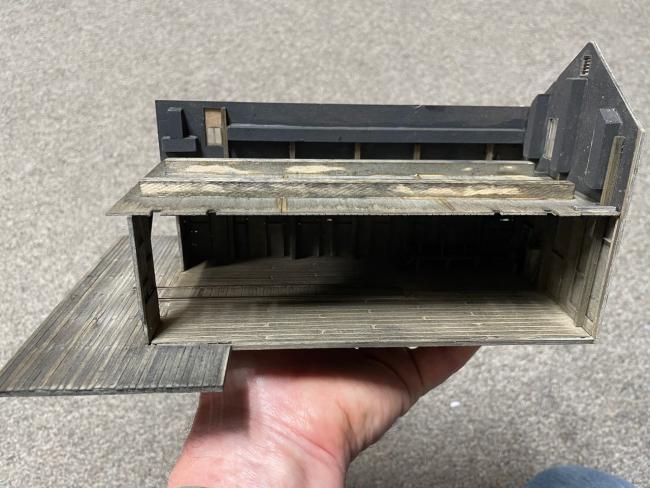

(figure 5.) Note the overhang in front. The underside here will be covered in the second layer of stripwood running the short length.

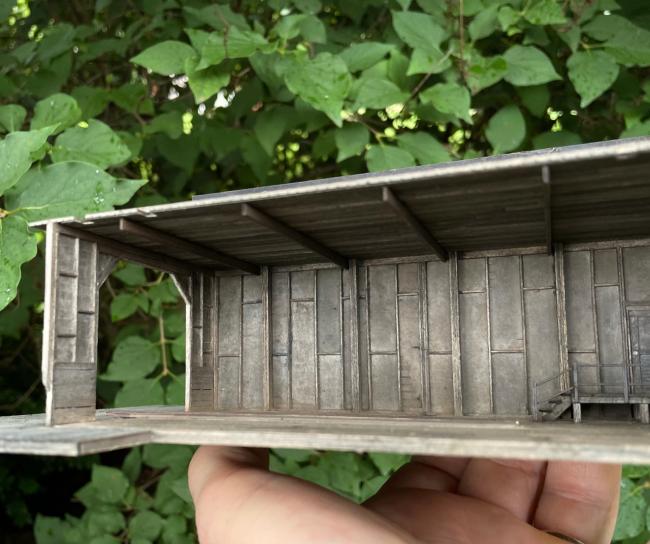

Here is a shot of the second story floor (figure 6.) in place with rafters installed. This roof piece is removable, allowing for the lights and any final details to be added.

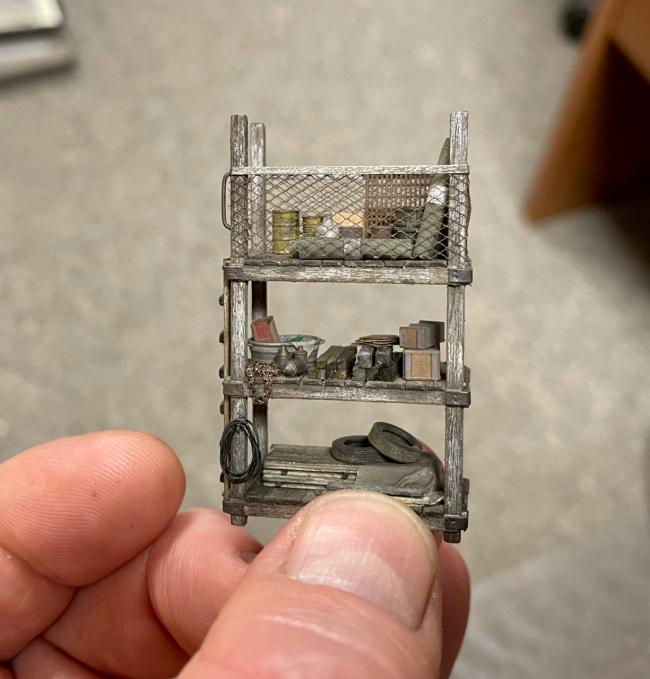

Here is the nearly finished shelf unit that will be in the interior of the main structure. There are 15 of Brett's 3D details in this piece alone!
