    Very good question Stephen. If we get a strip of LED lights, there is a chip in there somewhere that routes power so the lights come on but the power doesn't burn them out. This is that chip. On one side you can solder the lights directly and there is a chip that does this for you. You need a minimum of 12V because the chip itself eats up 5V. The only reason I know this is conversations I've had with Tim at nGineering.

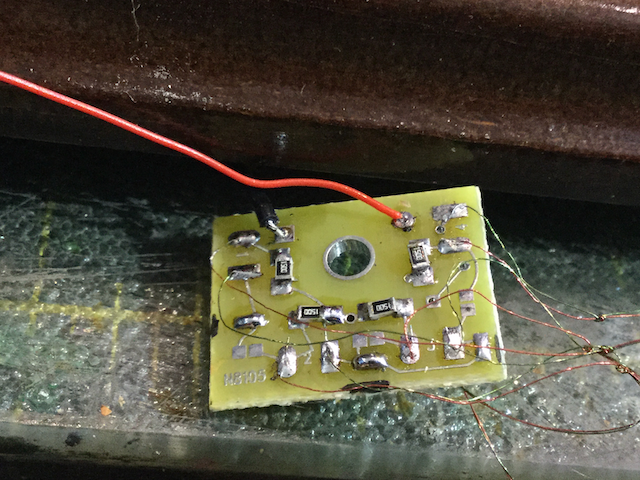

    In this photo you see red and green magnet wires. This is what I use to wire the LED's. Each light has a separate set of pads. The lights are wired in parallel, and you can add many more lights if you wire in series...once again, Tim. I chose to use 4 lights to make it easy on my brain to comprehend electricity. The small blocks that appear to read "1500" are 150 ohm resisters. There is one for each LED. The red and black wires are the power. I used 4-AA batteries to give me 6V and I incorporated the smallest SPDT slide switch I could find.
    F0E8E865-39BE-43E1-8287-E3CDF0ED35F7
  • prsdgt65
    Outstanding job on the diorama.
  • sdrees
    Thanks for your explanation.

  • Robert.GRobert.G
    I believe that installing lights is almost mandatory if you don't want to loose all the nice details in the darkness. It gives the diorama also an extra dimension. Great work Bryan !
  • brownbr
    Thanks again to everyone who commented. This is an awesome kit to work with. I've debated whether to order parts 1 & 2 again for when part 3 comes out.

    I'm calling this bad boy done. Here's a couple of night shots. Overall front and rear. And one shot in each bay...there is only 1 LED per bay. I chose not to light the outside front, but did the outside back. Didn't want a light-in-your-eye effect for viewing the front.

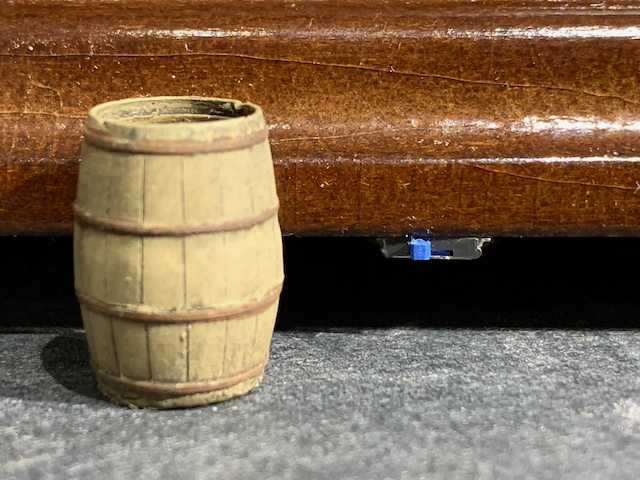

    Also, an overall view installed in its case and a closeup of the on/off switch with a barrel for size comparison.
