Just thinking about this Robert bought the kit he has the right to do anything that he likes,If he wants to put a glass roof on it so be it.
I did not know that we were rivet counters but there is a forum for that.
.......The Dude................
As I mentioned, what's the point of hiding all the nice CHB castings/machinery , as a matter of fact, hiding about 50 % of the whole interior once the roof is mounted.
Ok, you might say , make it removable, but are you gonna take off such a large , fragile roof construction every time someone wants to see the sawmill?? I don't think so. You could say, leave the roof off, ?? Ok, but than you would have to make a COMPLETE truss, beams and, I don't know all the roof parts names- construction which now isn't the case.
At least not in the kit. ( and not necessary if build as per instruction)
I try to build the kits, especially this one as logical as possible. I made already some changes in the construction. That is making sure that , for example the weight of the upper construction goes down on a pier, and not on a board with nothing under it.
But hey, where do you stop.
Prototypical?? What's in a word, right. I am sure, and said that on several occasions , that there went a lot of research from Brett in these kits, but on the other hand creativity is encouraged by the same Brett !!!

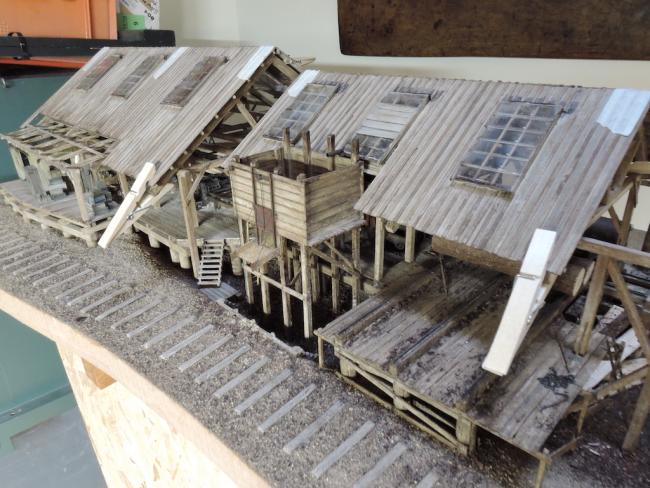

And yes Eric I also did think about the rain coming thru . You'll see , ( on the building photo, ) the seems are covered with tarpaper. As in real life !!!
And when I look at all the kits build here, there is none that is rainproof. ! Beautiful, weathered, worn, but get those pots and pans ready when the rain comes down ! But who cares...???
I also did some research on the net before beginning with the skylight adventure, just to make sure this was done in reality aswel. Look at the old sawmill photos.
So, I am not writing all this in defense, only to say that I wanted to get the most out of this kit as I do with all the others I've build and those waiting to be build.
I also noticed I always draw attention to fellow forum members/builders when I do something out of the box as they say. So , Like it or not, I hope you all enjoy the build.
Usually, like Eric, I don't like to show much photos of work in progress, it always seems to give a wrong idea, and most people can't see through the proces . I'd rather show something finished.
All that being said, I 'll go back to the bench and struggle some more with the installation of the lights. Make sure they are "prototypical" ....
I actually like the skylights....and I agree with it's the modelers option to build his world as they see it.....
I really appreciate ALL comments. Thanks for that.
Just keep going your way it's perfect.
Jerry

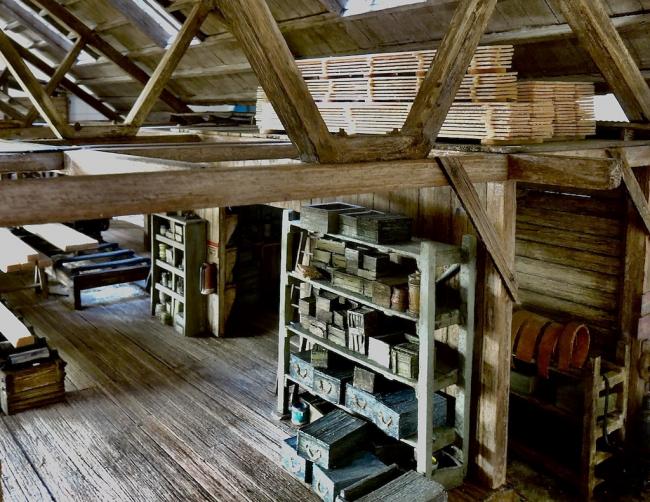

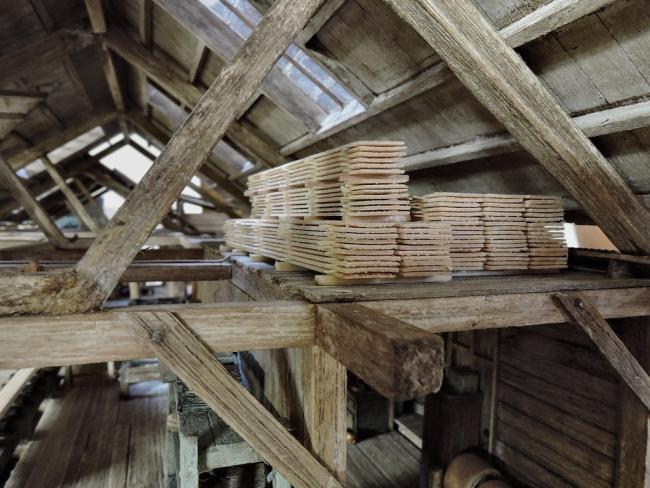

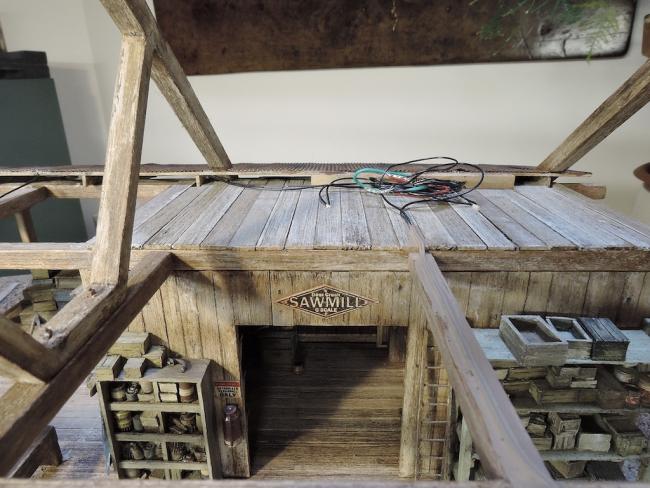

On this attic I could concentrate

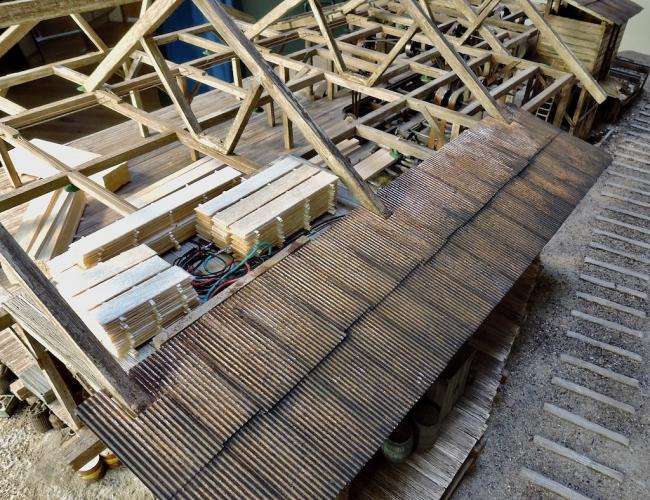

all the electrical wires coming from the lights all over the mill. (About 20 of them.), and hide this cluster with boards stacked to dry . These would be the better ones...
( confiscated by the mill boss, for private use ,probably...
The lightning installation will be documented later, so the painted beams/wires are not finished yet.

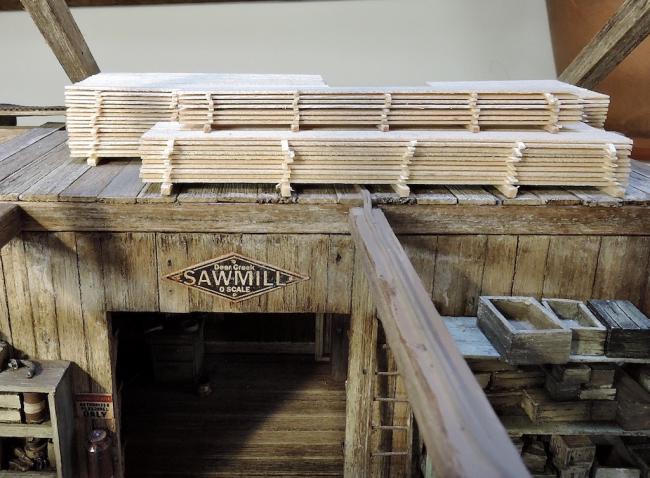

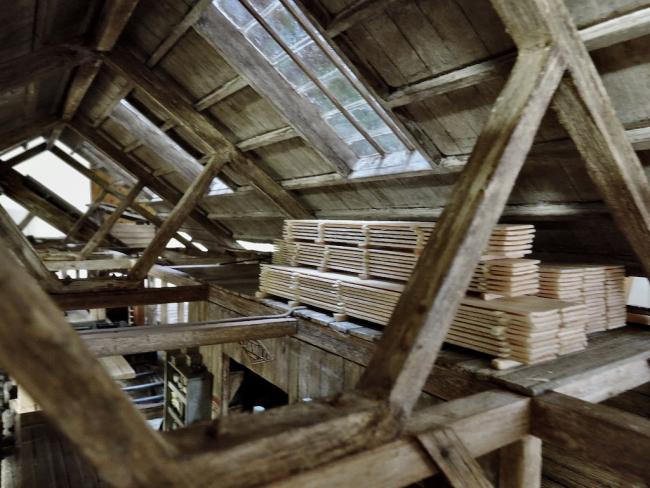

The very thin wooden slats between the boards are made of colored thick paper. In real wood they would be too thick for these boards ,proportion wise. ( I couldn't get that thin scale wood here anyway)
(Again , just work photos, nothing artistic because the awful light. Colors are a bit warmer))
Are you used to the skylights already ?..., like all new things, after a while it will seem they've been there for ever .
Very creative solution for a situation that vexes all modelers who want to add lighting to their structures in a realistic manner without seeing wires exposed all over the place.
Later, Dave S. Tucson, AZ
Have you done a tutorial on how you color your wood?
But your still an okay guy!!
Jerry
overwhelming
awe commanding
stupendous
regardful
impressive
grandiose
I can't add any words to that. Just awesome.

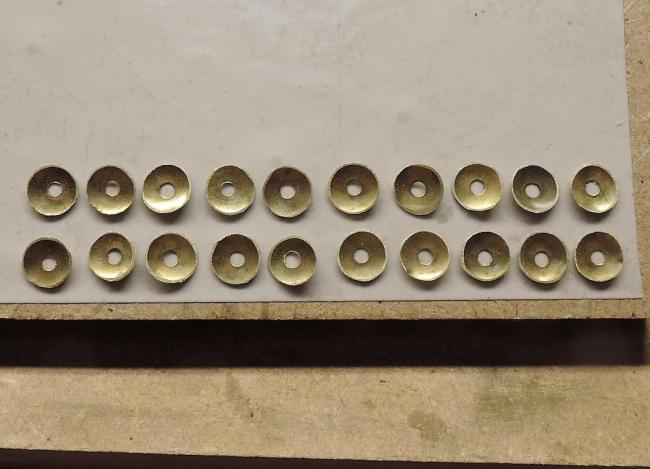

The lamp shades were made from a piece of brass. Drilled a hole and shaped it into a dome .

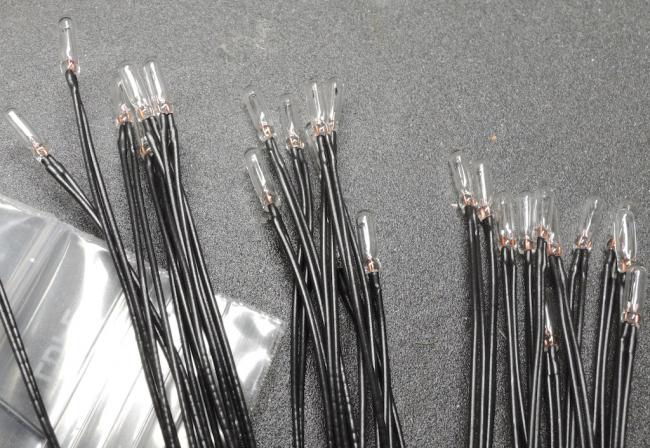

The bulbs are 16v and 5/64 diameter . No led here. They give a very warm natural light.

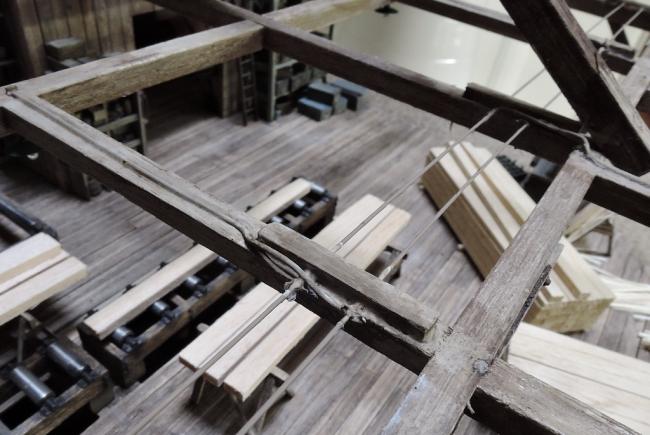

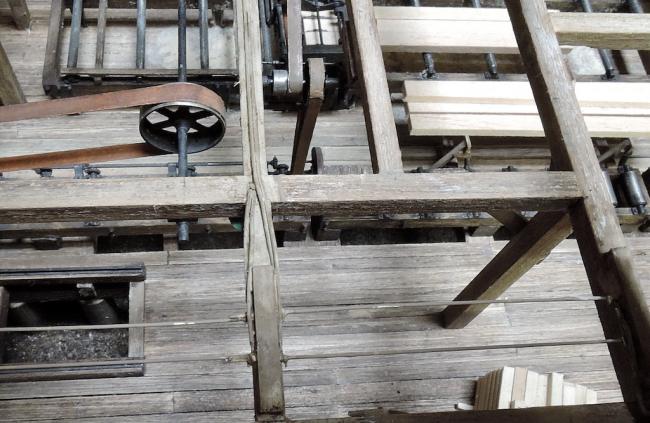

I installed two 1/64 brass rods on the beams. Held in wooden brackets epoxied to the beams.
I soldered the. two wires coming from the bulbs to each of the rods.
From the rods go two wires that come together with the ones that were installed separately and form the small cluster hidden by the stacked boards.
A thicker wire goes from the cluster trough the maintenance area under the base and to the transformer.

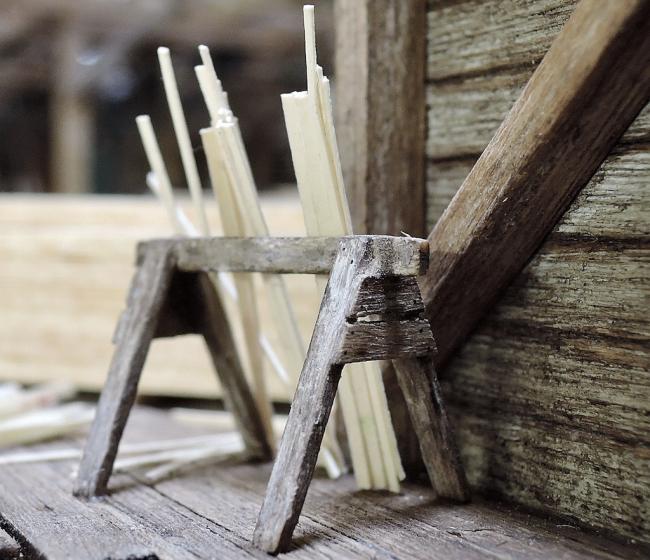

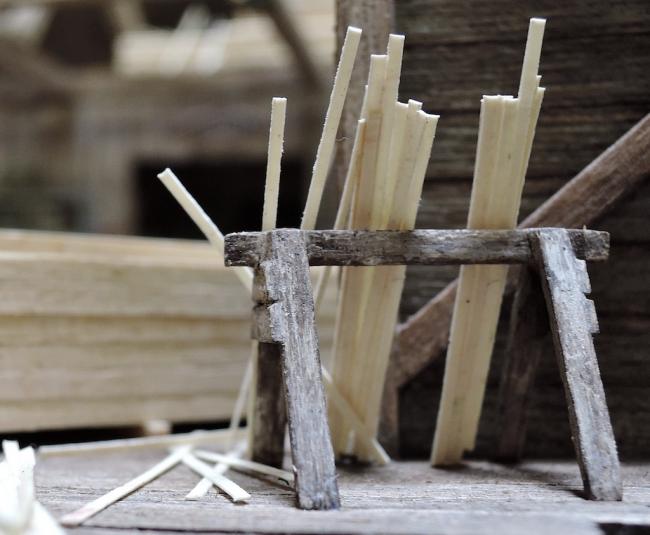

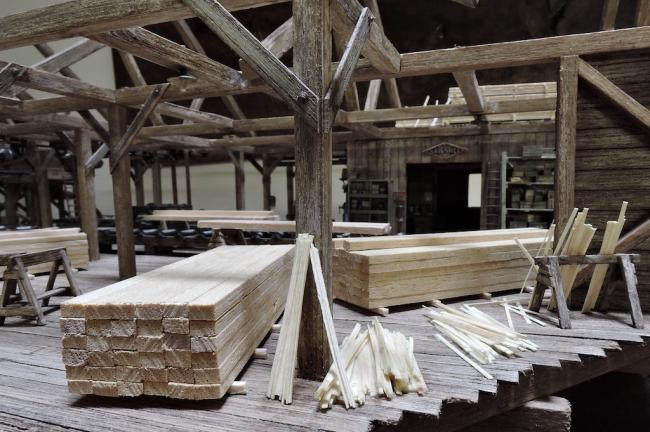

And some mini scenes and poetry to end this one.
Jerry
